| Fabricante | Codimag |
| Modelo | VIVA 420 |
| Ano | 2016 |
| Número de cores | 8 |
| Largura máxima da web | 420 mm |
| Min. - Comprimento máximo de impressão | 200 - 432 mm |
| Tipo de desenrolar | Único |
| Desenrolar com eixo / sem eixo | Com eixo |
| Diâmetro máx. da bobina de desenrolar | 1000 mm |

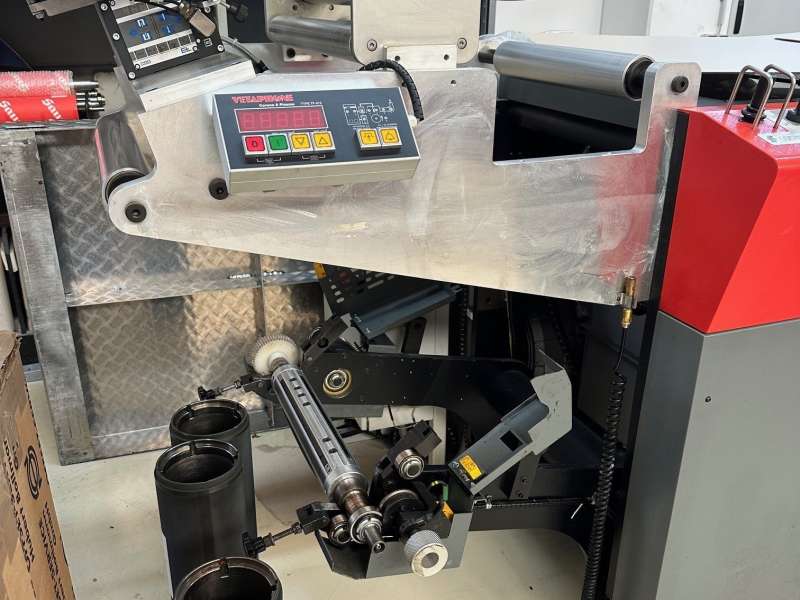

| Tipo de rebobinar | Único |
| Rebobinar com eixo / sem eixo | Com eixo |
| Diâmetro máximo da bobina de rebobinar | 1000 mm |
| Tipo de secagem | Gás |
| Guia de bordo | Sim |
| Câmera de vídeo | Sim |
| Tratador corona | Sim |
| Corte em linha | Sim |
| Estações de corte de matriz | Yes |
| Incluido |
Web cleaning Additional heat exchanger for individual temperature control of the plate cylinder on stations 5 and 6 Insetter For additional price: Rubber blankets Printing plates Plate setter |
| disponível a partir de | Now |
| A máquina pode ser vista em produção | Sim |

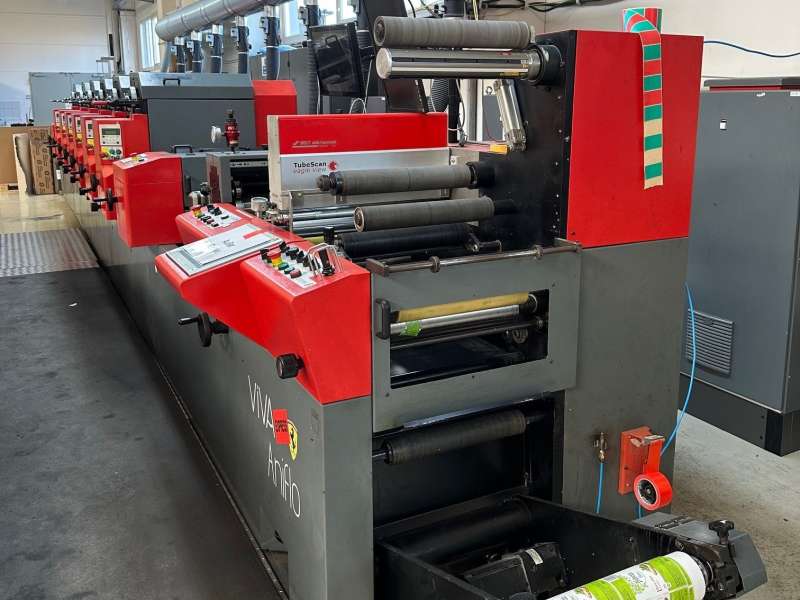

The Codimag VIVA420 is a highly versatile narrow web printing press designed for the production of high-quality self-adhesive labels and flexible packaging materials. Combining offset and flexographic printing technologies within one platform, the VIVA series is well known in the label and packaging industry for its flexibility, print quality, and efficient production capabilities. The hybrid configuration allows converters to benefit from the sharp image quality of offset printing together with the adaptability of flexo units for coatings, varnishes, and special applications.

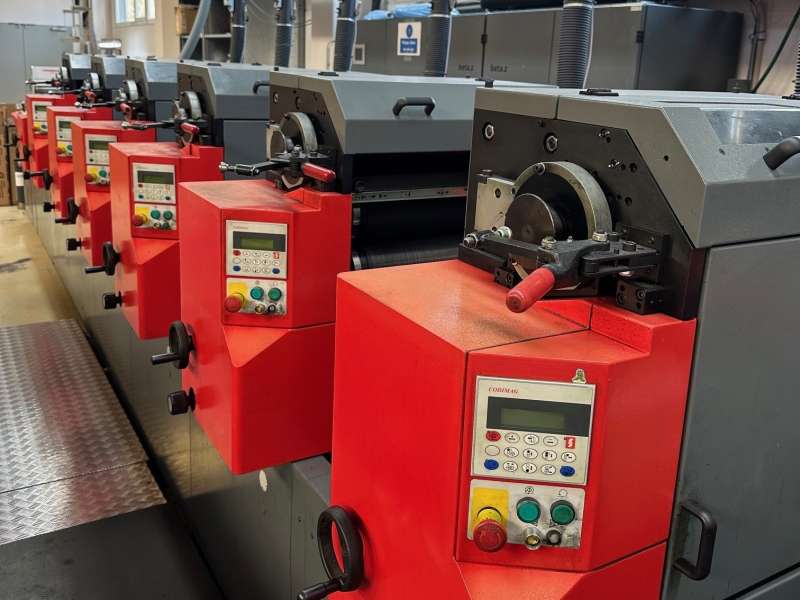

This particular VIVA420 is equipped with 8 printing units, including 6 offset units and 2 flexo units positioned on stations 1 and 8. The machine offers a maximum web width and printing width of 420 mm and supports printing repeats from 200 to 432 mm. UV drying technology with IST-MBS6 systems ensures reliable curing performance at high production speeds while maintaining excellent print consistency.

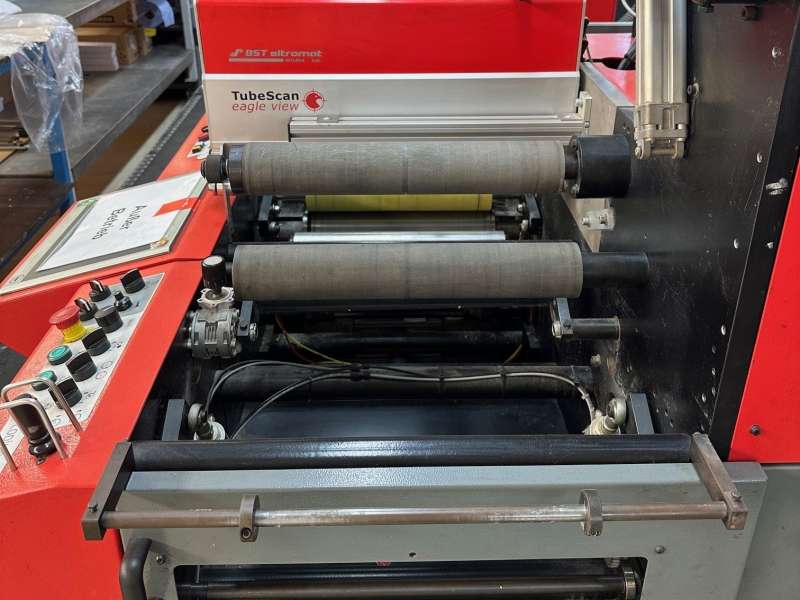

Additional features such as web guiding, BST Promark video inspection, corona treatment, inline slitting, web cleaning, inserter, and die cutting make this press suitable for a wide range of label and packaging applications. The machine is also equipped with an additional heat exchanger for individual temperature control of the plate cylinders on stations 5 and 6, contributing to improved print stability during demanding production runs.
The Codimag VIVA series is appreciated worldwide for its modular design, operator-friendly interface, and ability to deliver premium print quality across a broad variety of substrates.
