| Fabricante | W&H |
| Modelo | Miraflex AL |
| Ano | 2013 |
| CI ou stack | CI |
| Geared ou gearless | Gearless |
| Tipo de tintas | Base de solvente |
| Número de cores | 8 |
| Largura máxima da web | 1320 mm |
| Largura máxima de impressão | 1270 mm |
| Min. - Comprimento máximo de impressão | 370 - 1130 mm |
| Velocidade mecânica máxima | 400 m/min |
| Tipo de desenrolar | Torreta automática |
| Desenrolar com eixo / sem eixo | Com eixo e sem eixo |
| Diâmetro máx. da bobina de desenrolar | 1000 mm |
| Tipo de rebobinar | Torreta automática |
| Rebobinar com eixo / sem eixo | Com eixo e sem eixo |
| Diâmetro máximo da bobina de rebobinar | 1000 mm |
| Tipo de secagem | Gás |
| Guia de bordo | Sim |
| Câmera de vídeo | Sim |
| Tratador corona | Sim, AFS Single Side 6KW |
| Auto-limpeza | Sim |
| Controle de viscosidade | Sim |
| Número de aniloxes | 34 (see pdf) |
| Número de intermediários | 3 sets (see pdf) |
| Número de sleeves | 407 (see pdf) |
| Manuais disponíveis | Sim |
| Incluido |
Basic trolleys High-pressure CO2 system |
| Peças de reposição | Yes, basic spare parts |
Windmöller & Hölscher (W&H) is one of the world’s leading manufacturers of machinery for the flexible packaging industry. The German company has a long history of developing high-quality printing, extrusion, and converting solutions for producers of flexible packaging materials. W&H flexographic printing presses are widely used by packaging manufacturers around the world due to their focus on efficiency, reliability, and consistent print quality.
The W&H Miraflex series is designed for high-performance flexographic printing applications, offering modern solutions for the production of flexible packaging products. These presses are suitable for printing on a wide range of substrates used in the packaging industry, including films and other flexible materials.

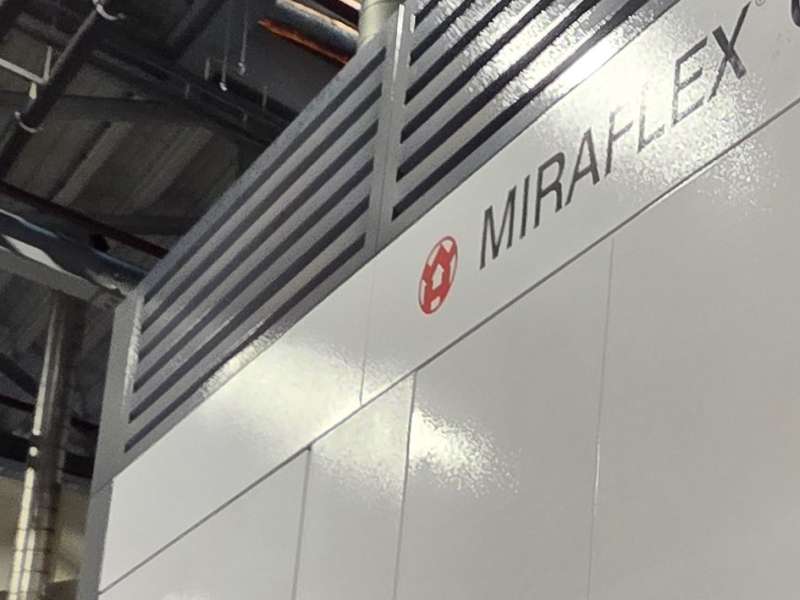

This used W&H Miraflex flexographic printing press was manufactured in 2013 and is equipped with 8 printing colours. With a working width of 1320 mm and a maximum print length of 1130 mm, the machine is suitable for various flexible packaging applications requiring high-quality multi-colour printing.
The press is equipped with automatic turret shaftless winders, providing efficient roll handling and supporting smooth production processes. The machine is supplied with more than 400 printing sleeves, offering flexibility for different job requirements and print repeat lengths.
A used W&H Miraflex printing press represents an opportunity for flexible packaging producers to acquire a reliable and proven flexographic printing solution from a renowned machine manufacturer.
