| Fabrikant | W&H |
| Model | Heliostar |
| Jaar | 2007 |
| Aantal kleuren | 8 |
| Max. baanbreedte | 1020 mm |
| Max. drukbreedte | 1000 mm |
| Min. - Max. druklengte | 450 - 1050 mm |

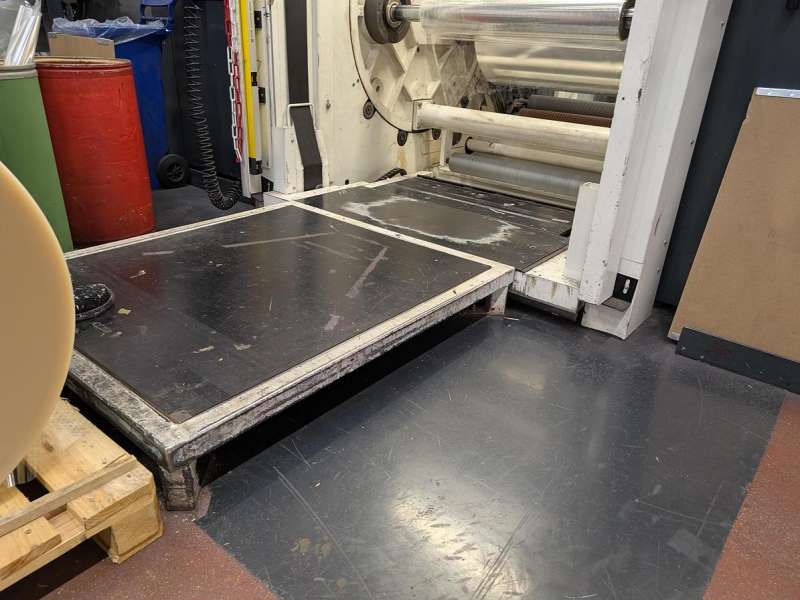

| Afwikkeltype | Automatische turret |
| Max. afwikkel roldiameter | 1000 mm |
| Opwikkeltype | Automatische turret |
| Max. opwikkeling roldiameter | 1000 mm |
| Droging | Gas |
| Kantensturing | Ja |
| Video camera | Ja, IPQ Check pro 100% inspection (2016) |
| Corona behandling | Ja |
| Viscositeit controle | Ja |
| Recente investeringen |
2016 IPQ Check pro 100% inspection Regi_star 20 update Retrofit to upgrade the existing couplings and motors for gravure cylinder drive to the latest version of Heliostar S consisting of: • parts for replacing the drives for inking rollers • chucks with adapter • drives support to the chucks • chuck sensors gravure cylinder bearings • replacing parts for the sidelay register • sidelay register drives -sidelay register guards • motor for gravure cylinder drive • mechanical mounting parts • electrical accessories documentation |

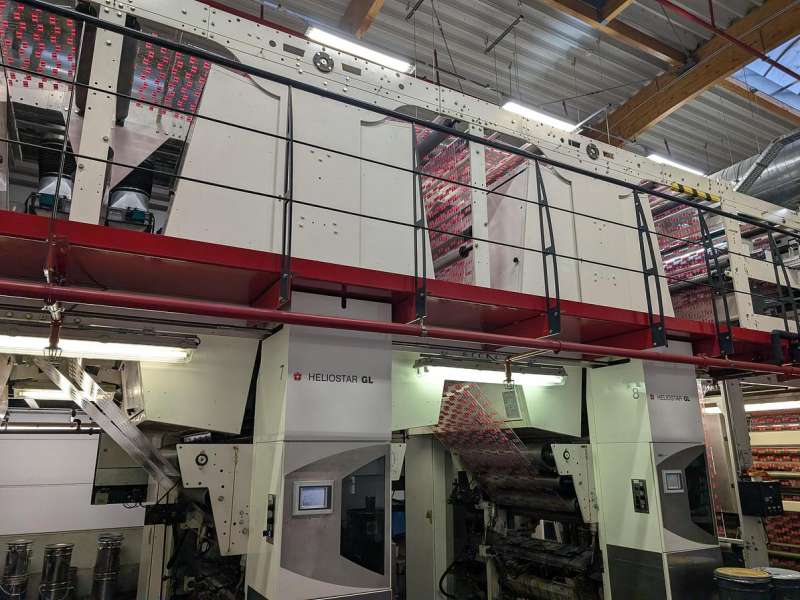

The Windmöller & Hölscher (W&H) Heliostar series is widely recognized in the flexible packaging industry as a benchmark for high-quality rotogravure printing. Designed for demanding production environments, Heliostar presses are known for their robust construction, precision engineering, and consistent print performance. These machines are typically used for printing on a wide range of substrates such as plastic films, laminates, and paper, making them highly versatile for various packaging applications.
A key advantage of the W&H Heliostar concept is its modular design, allowing for flexibility in configuration and the possibility of upgrades over time. This ensures that the machine can adapt to evolving production requirements and technological advancements. The integration of advanced automation systems contributes to efficient job changes, reduced waste, and improved overall productivity.

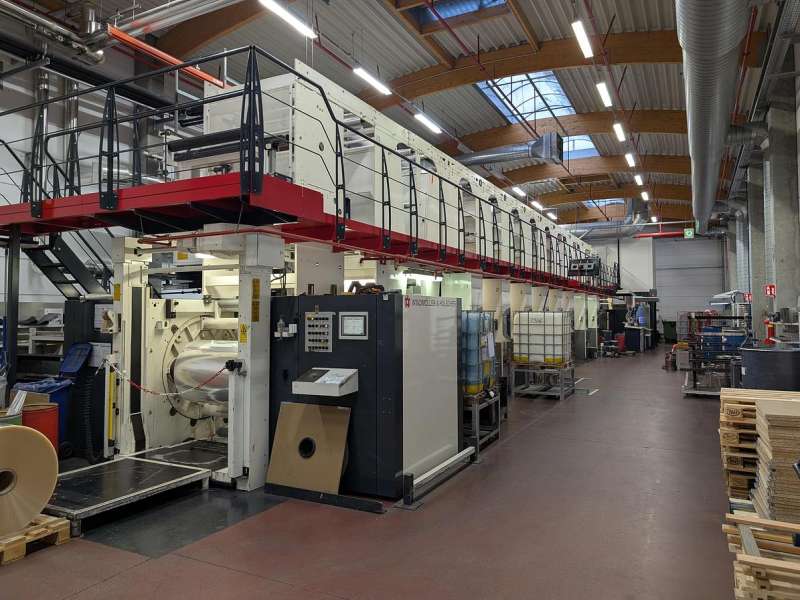

This particular Heliostar rotogravure press, built in 2007, features a working width of 2020 mm and is equipped with 8 printing units. In 2016, the machine underwent a major upgrade, including the installation of the IPQ Check Pro 100% inspection system and an update to the Regi_star 20 register control system. These enhancements support improved print quality control and registration accuracy, which are critical in high-end packaging production.
Overall, the W&H Heliostar remains a reliable choice for converters seeking consistent performance, advanced technology, and long-term operational value in rotogravure printing.
