| Fabriquant | Cerutti |
| Modèle | 28R |
| Année |
1982 Electrical retrofit 2012 |
| Cylindre d'impression ou manchon | Manchons |
| Nombre de couleurs | 9 |
| Largeur maximale du film | 1200 mm |
| Min. - Max. longueur d'impression | 480 - 1000 mm |
| Vitesse mécanique maximale | 250 m/min |
| Matériaux |
MDPE min. 30 μ PE: 12 - 30 μ PP: 18 - 30 μ Paper/aluminum laminate: max 180 g/m² Paper: max 180 g/m² Plain aluminum: min 9 μ |
| Type de dérouleur | Système de rotation automatique |
| Diamètre max. du rouleau au dérouleur | 800 mm |
| Type de enrouleur | Système de rotation automatique |
| Diamètre max. du rouleau à l'enrouleur | 800 mm |
| Type de séchage | Huile thermique |
| Source de séchage incluse | Oui |
| Séchage prolongé | Yes, units 7, 8 and 9 |
| Unité(s) de guidage du film | Oui, FIFE |
| Caméra vidéo | Oui, Grafikontrol Matrix (2016) |
| Traiteur corona | Oui, Softal |
| Contrôle de la viscosité | Oui, Gama VIS-G25 (2012) |
| Barre de retournement | Oui, before unit 9 |
| Investissements récents |
2012: Complete electrical retrofit 2012: New viscosity control Gama VIS-G25 2016: New Register system Grafikontrol CR33 2016: New Grafikontrol Matrix camera |
| Disponible à partir de | Now |
| La machine peut être vue en production | Oui |

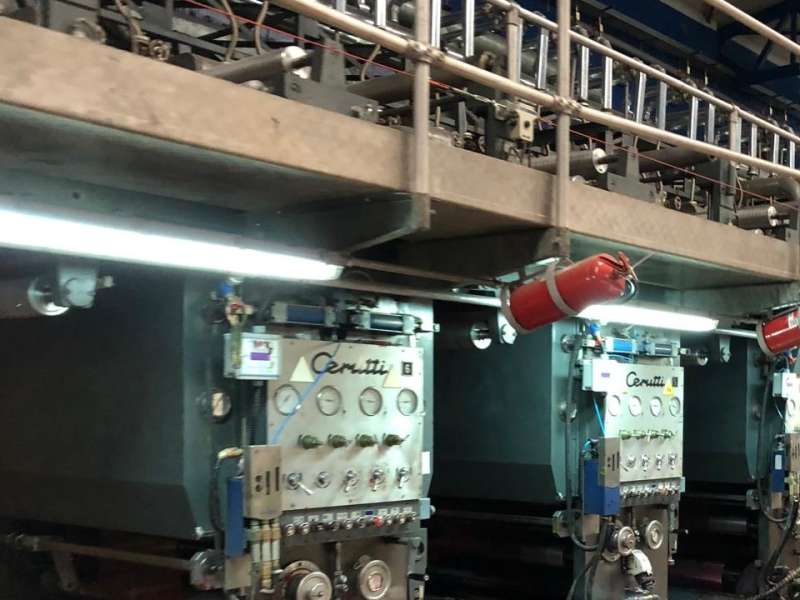

The Cerutti 28R rotogravure printing press is a reliable and well-known solution for high-quality printing in the flexible packaging industry. Cerutti is one of the leading manufacturers of rotogravure presses worldwide, recognized for robust engineering, precision, and long-lasting performance. Their machines are widely used for producing flexible packaging, labels, and other printed materials that require consistent and detailed print results.
This particular Cerutti 28R model combines the proven durability of the original machine with significant modern upgrades. Originally built in 1982, the press underwent a complete electrical retrofit in 2012, ensuring that it meets modern production standards and can be integrated more efficiently into today’s workflows. In addition, a new register system was installed in 2016, which improves accuracy and stability during production. These upgrades significantly enhance reliability and reduce downtime, making the press a valuable option for printers looking for a balance between cost-effectiveness and performance.
The machine is equipped with 9 colour printing units and allows for reverse printing on station 9, providing flexibility for a wide range of packaging applications. With a working width of 1200 mm, it is suitable for medium to large production runs and offers versatility in handling different substrates. The addition of a videocamera system installed in 2016 further supports quality control, enabling operators to monitor and maintain print consistency throughout the job.
Overall, the Cerutti 28R remains a strong choice for businesses seeking a reliable rotogravure press with modernized features that continue to deliver excellent printing results.
